Maximum Concrete Compaction Efficiency
Quickly eliminates trapped air voids and honeycombing to produce ultra-dense, high-strength concrete with smooth glossy finishes.
Machinery

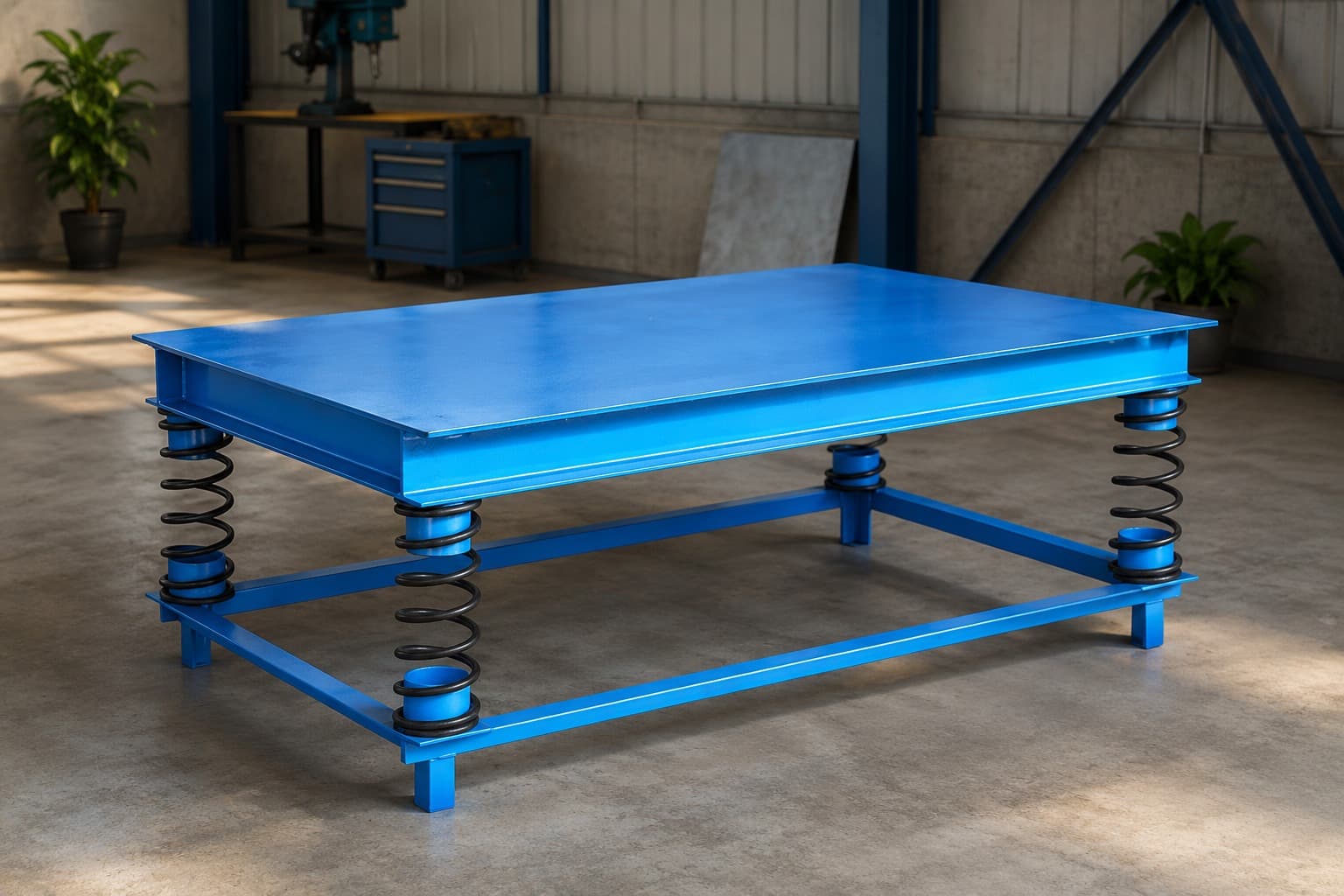

Precast Concrete Heavy-Duty Vibrating Table (Concrete Compaction Table)
Engineered for precast concrete factories, product manufacturing plants and testing facilities, our Precast Concrete Heavy-Duty Vibrating Table provides high-efficiency compaction and air elimination for concrete moulds. Constructed from IS 2062 structural steel with top plates up to 12 mm thick and supported by high-tension helical spring dampers, this vibrating table features adjustable 3000 RPM unbalance motors to deliver uniform vibration distribution, maximum concrete density and smooth, bubble-free finishes.
Key Features & Benefits
Built for high-output panel production
Heavy-Duty Helical Spring Dampers
Four-corner high-tension spring isolation confines high-frequency vibration to the table top, protecting the sub-frame and floor foundation.
Rigid Anti-Deflection Under-Grid
A heavy ISMC channel grid below the top plate prevents dead spots and delivers uniform vibration across the table surface.
Adjustable Vibration Force
Eccentric unbalance weights on motor shafts allow vibration force and amplitude tuning according to mould weight and concrete slump.
Wear-Resistant Steel Top Plate
Heavy 8 mm to 12 mm smooth steel resists impact, surface wear and corrosion from daily concrete casting and wash-downs.
Technical Specifications & Material Build
- Design Configuration
- Spring-damped heavy-duty structural steel vibrating table
- Material Grade
- High-Grade Structural Mild Steel (IS 2062 Grade)
- Table Top Plate Thickness
- 8 mm / 10 mm / 12 mm Heavy-Duty smooth steel surface
- Frame & Under-Stiffeners
- Heavy ISMC channels (100 mm / 125 mm / 150 mm) grid network
- Suspension Isolation
- High-tension helical spring dampers with four-corner support
- Protective Coating
- Anti-rust epoxy primer with industrial blue epoxy coating
- Operational Duty
- Engineered for continuous heavy industrial duty
- Motor Drive Power
- 2 HP / 3 HP / 5 HP / 7.5 HP unbalance vibratory motor options
- Motor Rating
- 3000 RPM, 3-phase, 415V, 50Hz heavy-duty industrial motor
- Control Panel
- On/off DOL starter with thermal overload protection; VFD compatible
Production Capacity & Dimensions
- Standard Production Model
- 3 ft x 6 ft (1.0 m x 1.8 m) | 2 HP / 3 HP single or dual motor | 500 kg - 1000 kg capacity
- Industrial Commercial Model
- 4 ft x 8 ft (1.2 m x 2.4 m) | 3 HP / 5 HP high-force motor | 1000 kg - 2000 kg capacity
- Heavy Precast Yard Model
- 5 ft x 10 ft (1.5 m x 3.0 m) | 5 HP / 7.5 HP high-force motor | 2000 kg - 4000 kg capacity
Primary Applications
Frames & Openings
Precast concrete door frame (chaukhat) and window frame moulding.
Precast Utilities
Cover blocks, paver blocks, manhole covers and drain trench covers.
Wall & Structural Precast
Boundary wall panels, column base footings and pocket footings.
Posts & Cable Ducting
Fencing posts, Y-poles, electricity poles and cable duct trays.
Testing & QC Labs
Material testing laboratories and precast product quality control setups.
Designed for dependable production
Industrial precast concrete heavy-duty vibrating table for superior compaction, with IS 2062 steel, helical springs, adjustable 3000 RPM motors and VFD support. Dimensions and configuration can be discussed based on your project requirement.
Applications
- Concrete compaction
- Precast product production
- Mould filling processes
Frequently asked questions
Can this mould be made in custom dimensions?
Share your drawing or requirement with us. Our team will guide you on available configuration options.
