Multi-Size Production Capability
Flexible engineering supports 150 x 150 mm, 250 x 250 mm and 300 x 300 mm column profiles for diverse structural and boundary wall requirements.
Mould

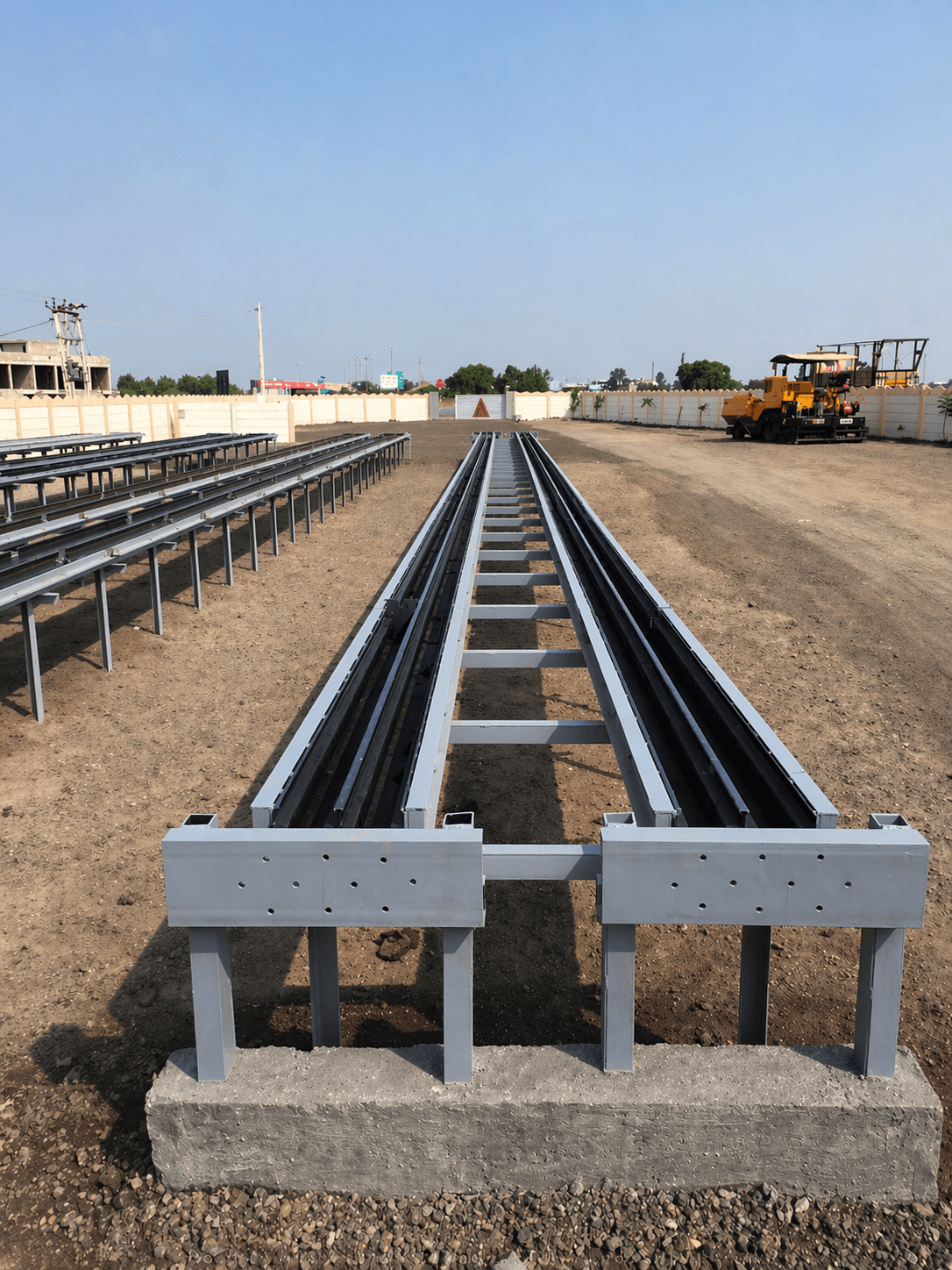

Multi-Size Precast Concrete Column Pole Mould Line (26 Pole Capacity)
Engineered for heavy-duty precast casting, our Multi-Size Precast Concrete Column Pole Mould Line provides maximum flexibility and high-volume output for RCC column post manufacturing. Capable of producing 150 x 150 mm, 250 x 250 mm and 300 x 300 mm column poles, this mould line combines heavy structural steel construction with hydraulic system compatibility to maximize factory productivity and reduce turnaround times.
Key Features & Benefits
Built for high-output panel production
High-Output Single Line Layout
Casts up to 26 concrete column poles in a single production line, optimizing floor space and boosting daily output.
Heavy-Duty Steel Fabrication
Built with high-tensile steel channels, angles and rust-resistant plates designed to withstand continuous vibration and industrial casting cycles.
Hydraulic System Ready
Integrates smoothly with hydraulic clamping, opening and stripping setups to accelerate demoulding cycles and lower labour dependency.
Technical Specifications & Material Build
- Mould Category
- Multi-Size Precast Concrete Column Pole Mould
- Available Column Sizes
- 150 x 150 mm | 250 x 250 mm | 300 x 300 mm
- Main Base / Frame
- 50 x 100 mm Heavy C-Channel
- Side & Base Forming Plates
- 4 mm - 6 mm High-Grade Steel Plate
- Outer Support Structure
- 50 x 50 x 6 mm Structural Steel Angle
- Locking & Alignment Rods
- Heavy-Duty Bright Steel Bar
- Operation Mode
- Manual / Hydraulic System Compatible
Production Capacity & Dimensions
- Production Line Output
- 26 Concrete Column Poles per Line / Cycle
- Standard Column Profiles
- 150 x 150 mm (6 in x 6 in), 250 x 250 mm (10 in x 10 in), 300 x 300 mm (12 in x 12 in)
- Length & Groove Options
- Custom lengths and H-beam / groove configurations available
Primary Applications
Heavy Commercial & Industrial
Boundary walls for factories, industrial parks, logistics hubs and commercial complexes.
Infrastructure & Public Works
Highway median barriers, highway sound walls, school enclosures and hospital boundary fencing.
Agricultural & Property Boundary
Large farmhouse enclosures, estate land fencing, agricultural plot demarcation and residential developments.
Designed for dependable production
High-capacity multi-size precast column pole mould line supporting 150 x 150 mm, 250 x 250 mm and 300 x 300 mm sizes, with 26-pole output and hydraulic compatibility. Dimensions and configuration can be discussed based on your project requirement.
Applications
- Precast concrete columns
- Structural support members
- Boundary wall pole production
Frequently asked questions
Can this mould be made in custom dimensions?
Share your drawing or requirement with us. Our team will guide you on available configuration options.
How do I get a quote?
Call or WhatsApp us at +91 87804 86457 to discuss your requirement.
